Name: Non Rotating 5quot 7quot Casing Shoe And Float Collar API thread
Brand: Puyang Zhongshi Group
Price: 1 USD

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~36"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Oilfield Non Rotating Casing Float Collar and Float Shoe

Type : Non-rotating

Size : 4 1/2''--20"

Material : P-110, K55, J55, N80,L80

Thread : API thread or as required

Service : OEM service

Contact Now

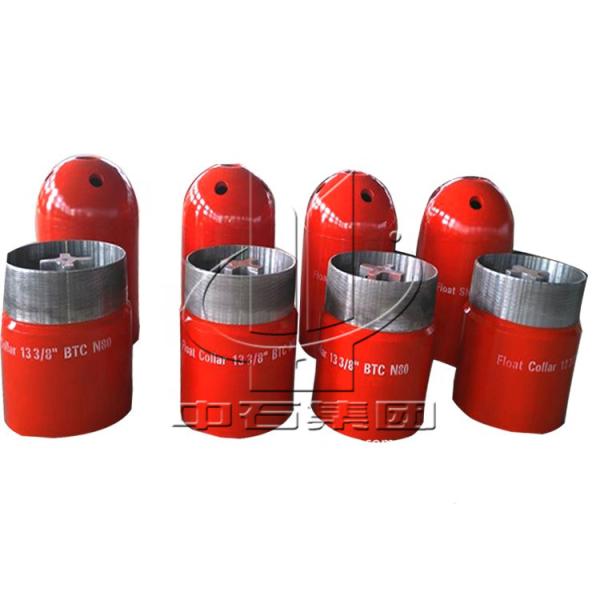

Oilfield Non Rotating Casing Float Collar and Float Shoe

Float collar and float shoe serve as the backbone of casing equipment used during primary cementing operations to prevent cementing mud flowing back

Oilfield Non Rotating Casing Float Collar and Float Shoe Features

The device can be connected directly to the casing of the same type.
Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
Valve seat and valve disk can effectively prevent grout from flowing back.
Non-rotating landing plate is available on request.
Either PDC or rock bit drillable.

Oilfield Non Rotating Casing Float Collar and Float Shoe Specification

Specification(in)		O.D.(mm)	Total length(mm)	I.D. (mm)	Min.Dia. (mm)	Conn Type	Affordable strength of back-pressure(Mpa)
Float Collar	5	141.3	500	110	50	5 BCSG	35
	5 1/2	153.67	530	112	55	5 1/2BCSG	35
	7	194.46	586	162.5	77	7 BCSG	35
	9 5/8	270	720	225	77	9 5/8 BCSG	35
	13 3/8	365	720	319	77	133/8 BCSG	35
	20	533.4	720	475	77	20 BCSG	35
Float Shoe	5	140.3	495	110	50	5 BCSG	35
	5 1/2	153.67	514	122	55	5 1/2 BCSG	35
	7	194.46	533	162.5	77	7 BCSG	35
	9 5/8	269.88	550	225	77	9 5/8 BCSG	35
	13 3/8	339.7	550	319	77	133/8 BCSG	35
	20	534	652	475	77	20 BCSG	35
