Customized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter Casings

Puyang Zhongshi Group Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter Casings

Contact Now

Product Name: China Factory API Oilfield Float collar Float Shoe Size 9 5/8" 5 1/2 and 13 5/8" Cementing Tools.

he technique known as Stab-In Float Collar and Shoe represents an innovative approach utilized for cementing large diameter casings during drilling operations. This method requires directly inserting the drill pipe into the Float Shoe or Collar, while pumping cement through the drill pipe until it reaches the surface. To ensure the proper placement of cement, a wiper dart can be utilized to displace the cement to the bottom of the drill pipe. Once this process is completed, the drill pipe is lifted, circulated to ensure even cement distribution, and eventually removed from the wellbore.

It is crucial to point out that when implementing the Stab-In Float Collar and Shoe technique, large plugs are mandatory to separate the cement from the mud. Both the plugs and any cement present in the casing should be drilled out. This particular technique is designed explicitly for the cementing of large diameter casings that are lowered using drill pipes. Due to the substantial volume displacement associated with these casings, significant attention must be paid during the cementing process.

Customized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter Casings

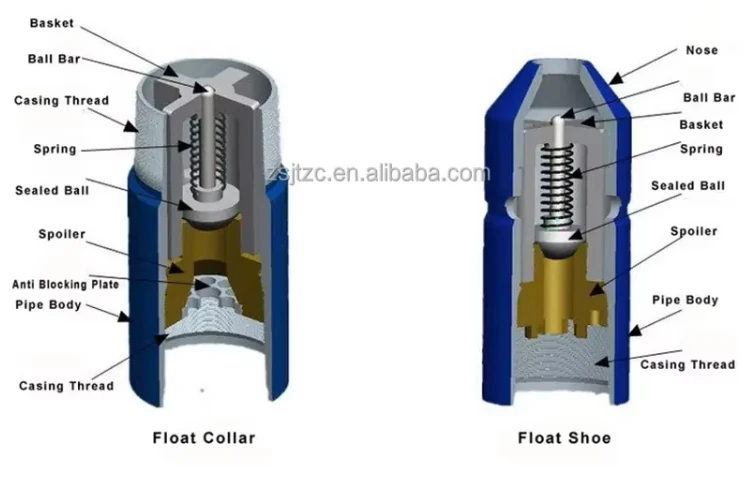

Features of Float Collar and float Shoe:

· Small diameter inner string off drill pipe is used to displace cement which minimizes displacement volume behind Cement and there by reduces contamination and save time.

· Drill out of cement inside large casing is minimized by controlling cement top with displacement fluid in drill pipe And Plunger valve in Stab in Shoe

· Improve displacement accuracy — cement mixing and pumping continues until cement returns reach surface

· Get better cement quality — the reduced cement/mud interface area and high velocity of flow in the Drill

· Pipe Minimize cement contamination while the short pumping time eliminates the need for cement retarders

· Reduce cement volume — conventional displacement requires calculation of excess cement factor, whereas with Stab-in methods excess cement need be no greater than the volume of the drill pipe. No large plugs are needed

· Reduce net rig time — circulating, pumping, and drill-out times are minimized

· Protect casing — cementing pressures are confined to the drill pipe as in a squeeze job

· The Stab-in cementing equipment is available in size 4-1/2”-36”

· The Stab-in cement Float Shoe & Collar are also available with Double Valve and any combination.

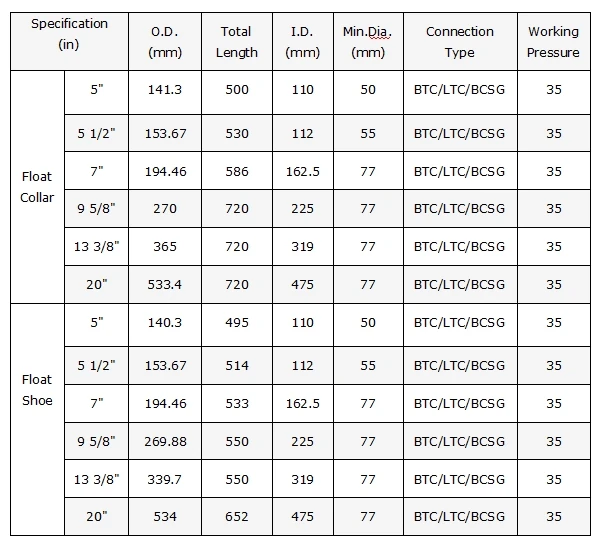

Specification of Float Collar and float Shoe:

Customized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter Casings


Customized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter CasingsCustomized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter Casings

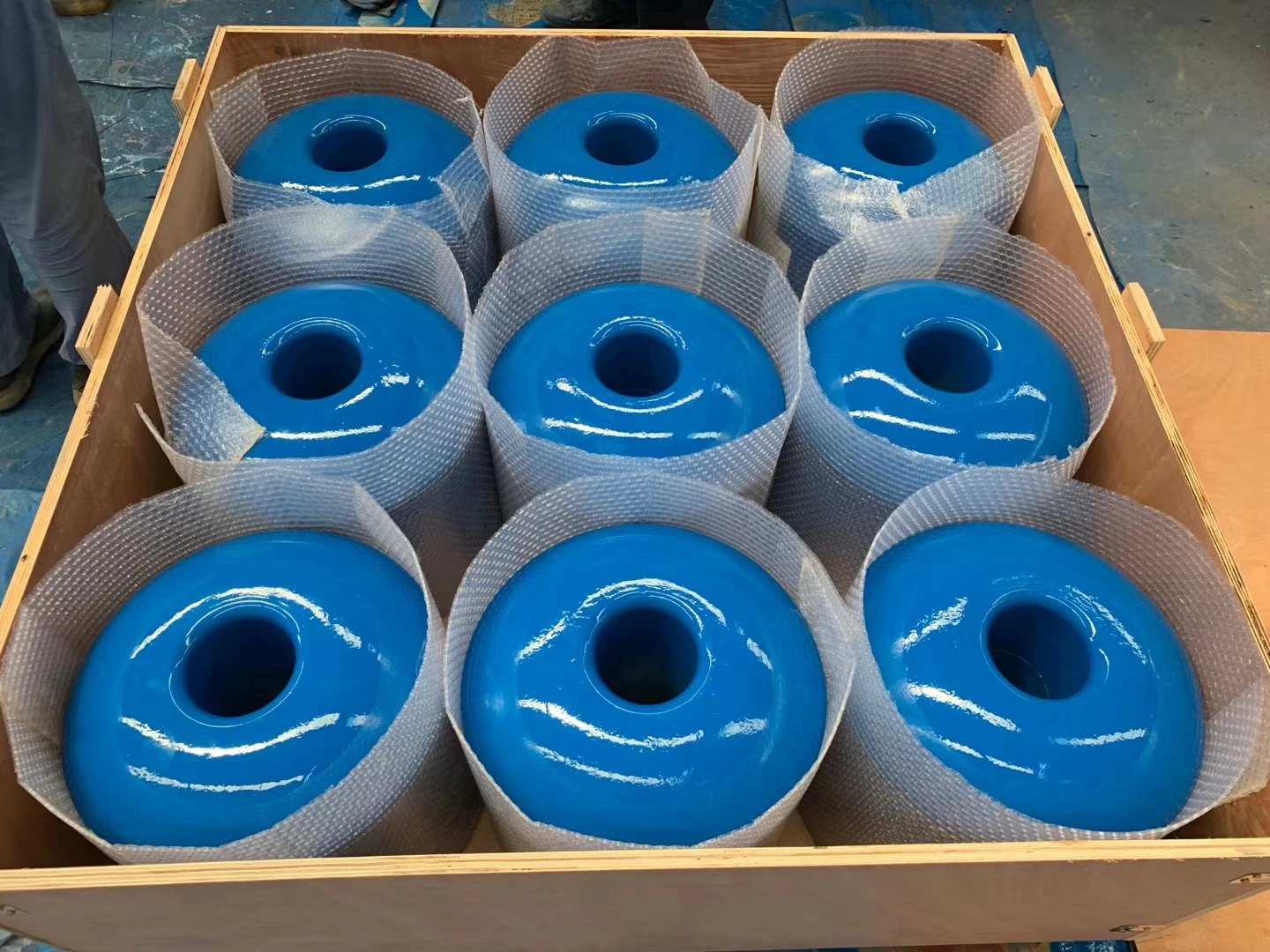

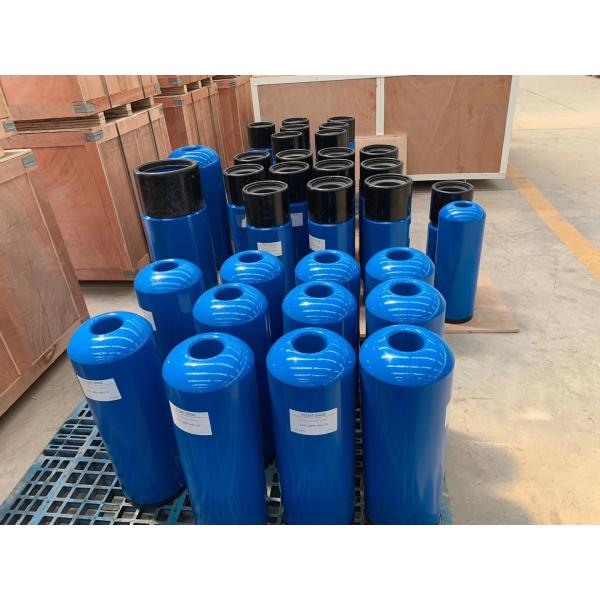

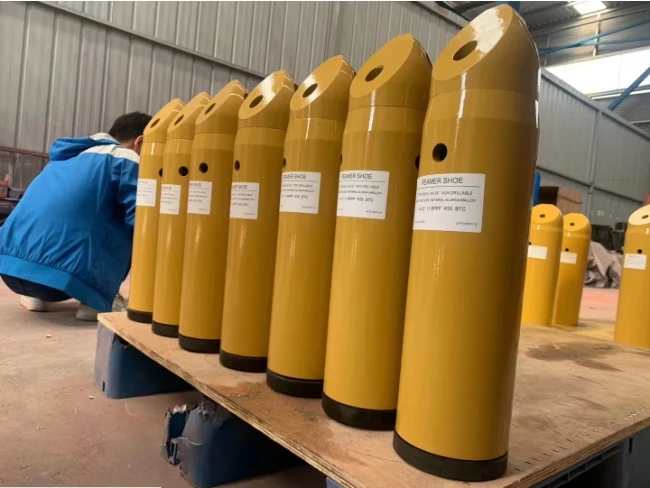

Packaging & Shipping

Customized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter Casings


Customized 9 5/8" 5 1/2" and 13 5/8" API Oilfield Float Shoe and Float Collar for Large Diameter Casings
